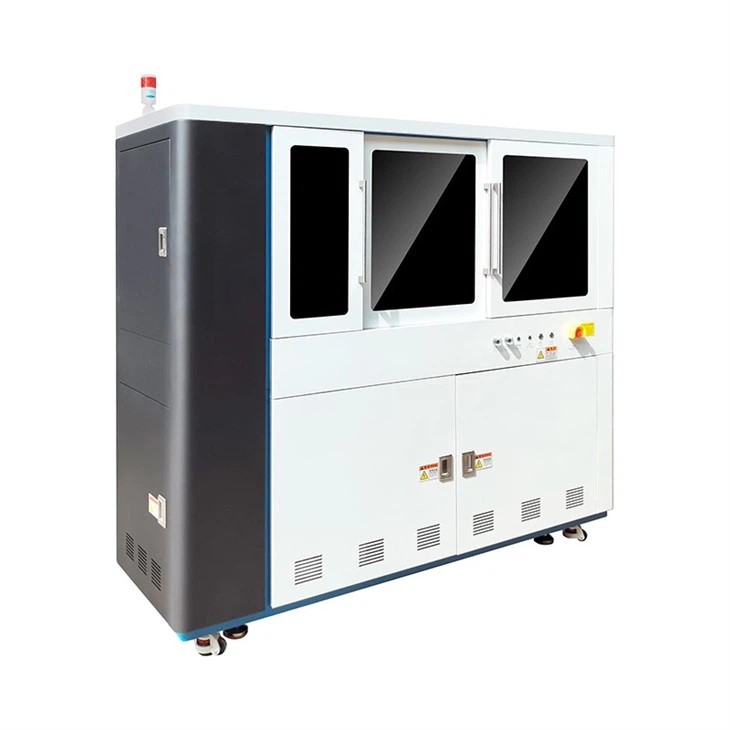

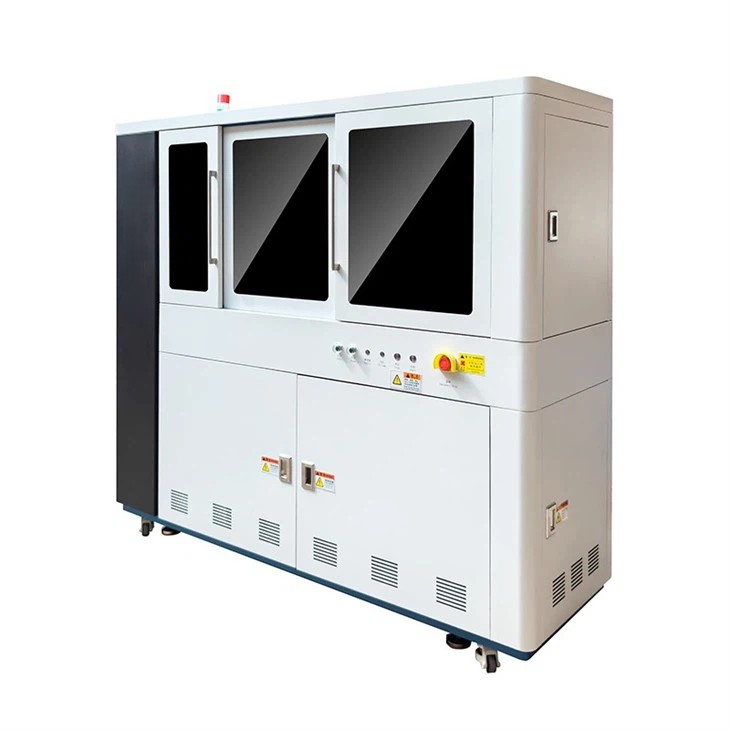

Nuventure CG-F5 UV Cylinder Printer

DIRECT-TO-OBJECT ROTARY PRINTING | TOSHIBA CF3 TECHNOLOGY

The Nuventure CG-F5 UV Cylinder Printer is a high-performance rotary UV printing solution designed for direct printing on bottles, tumblers, flasks, and other cylindrical or conical objects.

Powered by Toshiba CF3 industrial printheads, the CG-F5 delivers excellent image clarity, strong ink adhesion, and stable long-run performance.

Product Features

Toshiba CF3 Industrial Heads: High-precision printheads with a 3.5pl drop size for fine details and smooth gradients.
360° Rotary Printing: Prints the full circumference of cylindrical and conical objects.
Wide Diameter Support: Handles objects from 45mm to 125mm in diameter.
White & Varnish Capability: Supports CMYK, White, and Varnish inks for vibrant colors and special effects.
High-Speed Production: Achieves printing speeds as fast as 20 seconds per piece.
Versatile Object Handling: Supports cylinders, cones with 0–5 degree taper, and special shapes.
LED UV Curing: Integrated LED UV lamp provides efficient curing during the printing process.

Specifications

brand	DRS Corporation
model	DRS CG-F5 UV Cylinder Printer \| Direct Bottle Printing

Why Choose Nuventure CG-F5 UV Cylinder Printer?

The Nuventure CG-F5 combines industrial Toshiba CF3 printhead technology with 360° rotary printing to provide a reliable solution for direct-to-object cylindrical and conical printing applications.

Toshiba CF3 Technology: Delivers high-precision printing with a 3.5pl ink drop size.
360° Full-Circumference Printing: Enables seamless printing around cylindrical and conical objects.
CMYK+W+Varnish: Supports vibrant colors, white ink printing, and special varnish effects.
High-Speed Production: Printing can be completed in as little as 20 seconds per piece.
Wide Object Compatibility: Supports diameters from 45mm to 125mm and print lengths from 30mm to 270mm.
Industrial Performance: Designed for stable and reliable long-run commercial production.

The Advantage: Advanced Rotary UV Printing Technology

Precision Toshiba CF3 Printheads

Toshiba CF3 industrial printheads provide high-precision output with a 3.5pl drop size, helping produce fine details and smooth gradients.

360° Direct-to-Object Printing

The CG-F5 is designed for full 360-degree rotary printing, allowing graphics to be applied directly around cylindrical and conical objects.

White & Varnish Effects

The printer supports K, C, M, Y, White, and Varnish inks, enabling vibrant printing on dark surfaces and the creation of textured special effects.

Fast Commercial Production

With printing speeds as fast as 20 seconds per piece, the CG-F5 is designed to support efficient production for commercial environments.

Technical Specifications

Printing Configuration

Specification	Details
Model	CG-F5
Printer Type	UV Cylinder Printer
Printhead	Toshiba CF3
Number of Printheads	1 – 5 Nos. (Optional)
Max Resolution	600 × 1800 dpi
Ink Drop Size	3.5 pl
Printing Mode	360 degrees rotary printing
Printing Speed	As fast as 20s per piece

Object Compatibility

Specification	Details
Object Diameter	45 mm – 125 mm
Print Length	30 mm – 270 mm
Taper Support	0 – 5 degrees
Applicable Shapes	Cylinder, Conical, Special shapes

Ink & System

Specification	Details
Ink Type	UV Ink
Ink Colors	K, C, M, Y, W (White), V (Varnish)
Curing System	LED UV Lamp
RIP Software	RIPrint
Data Interface	Gigabit Ethernet
Image Formats	TIFF, JPG, EPS, PDF, PNG, AI, PSD

Physical & Electrical

Specification	Details
Machine Dimensions	1990 × 685 × 1850 mm
Machine Weight	450 kg
Power Supply	AC 220V / 110V, 50/60Hz
Working Temperature	20℃ – 30℃
Working Humidity	30% – 60%
Certification	CE / ROHS / SGS

Applications & Usage

The Nuventure CG-F5 UV Cylinder Printer is designed for direct-to-object rotary printing on cylindrical, conical, and special-shaped products. It is suitable for customized commercial and promotional printing.

Water Bottles

Direct UV printing for customized water bottles and cylindrical containers.

Tumblers

360° rotary printing for personalized and promotional tumblers.

Thermos Flasks

Suitable for direct printing on cylindrical thermos flasks.

Wine Bottles

Enables customized graphics and branding on wine bottles.

Mason Jars

Supports direct rotary printing on mason jars and similar containers.

Sports Cans

Suitable for customized printing on cylindrical sports cans.

Conical Cups

Supports printing on conical objects with 0–5 degree taper.

Promotional Items

Ideal for customized branding and promotional cylindrical products.
