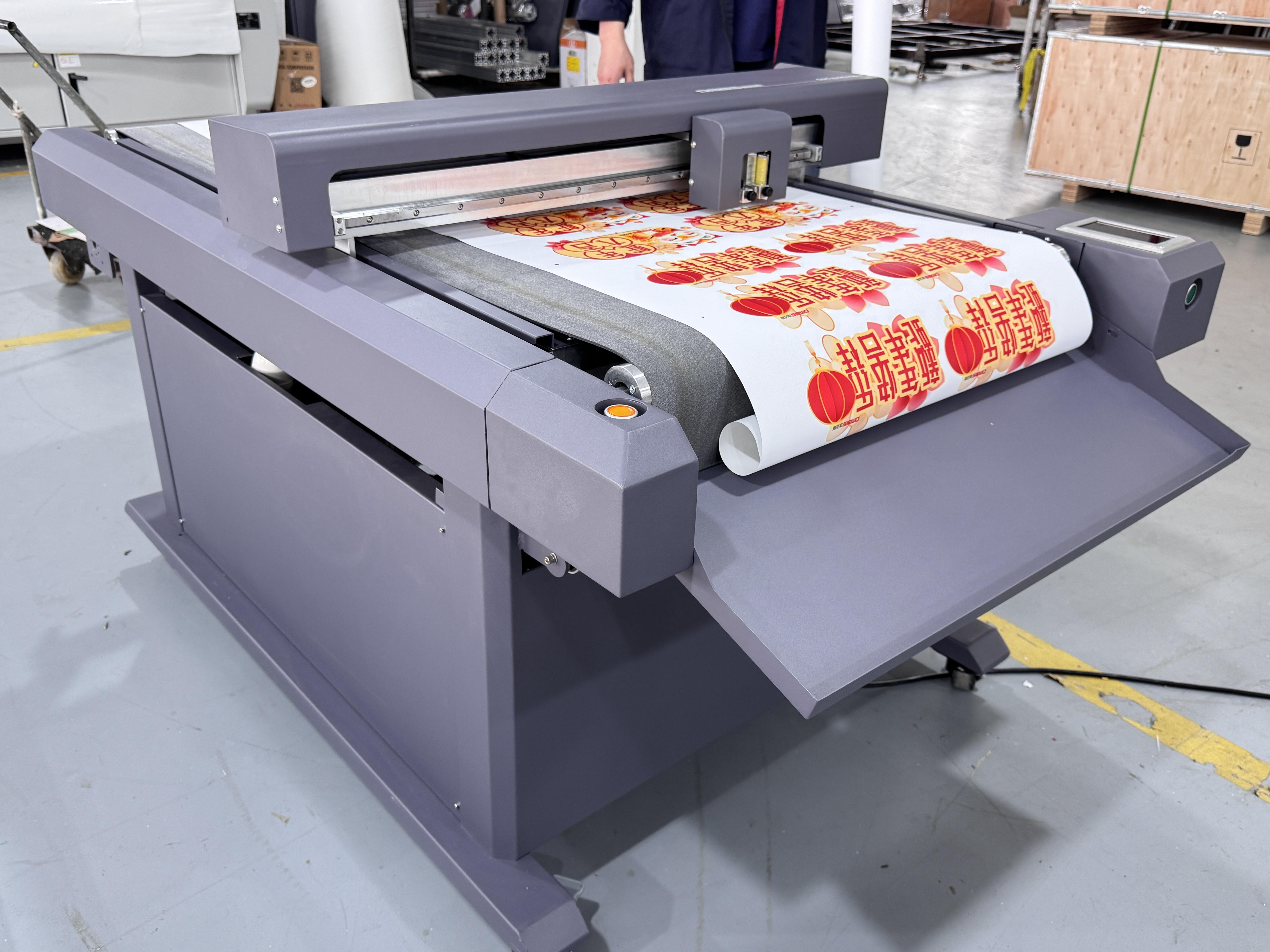

Skycut FR6090 Dual Head Flatbed Cutter

High-Precision Vacuum Table System | Industrial Series

The Skycut FR6090 sets the standard for industrial flatbed cutting with its dual-head efficiency and powerful 2000g cutting force. Engineered with a high-stability vacuum table and AI-camera system, this machine delivers precise results for packaging, signage, and textile applications. It supports automatic feeding and multi-material processing, making it the ideal solution for high-volume production environments.

Catalogue 1

Specifications

brand	DRS Corporation
model	Skycut FR6090 Dual Head Flatbed Cutter \| Industrial Vacuum Table System
key features	Skycut FR6090, Flatbed Cutter, Dual Head Cutter, Vacuum Table, Industrial Cutting Plotter

Key Features

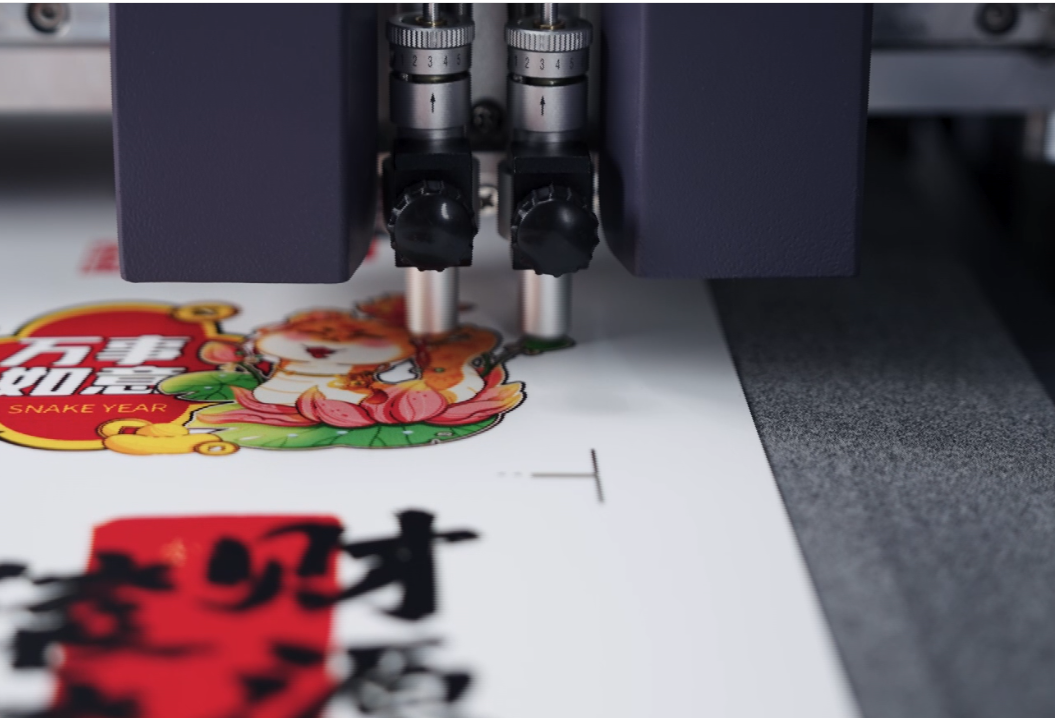

Dual Head Efficiency Features a dual-head configuration that doubles productivity, allowing for simultaneous cutting or creasing operations on the same material sheet.

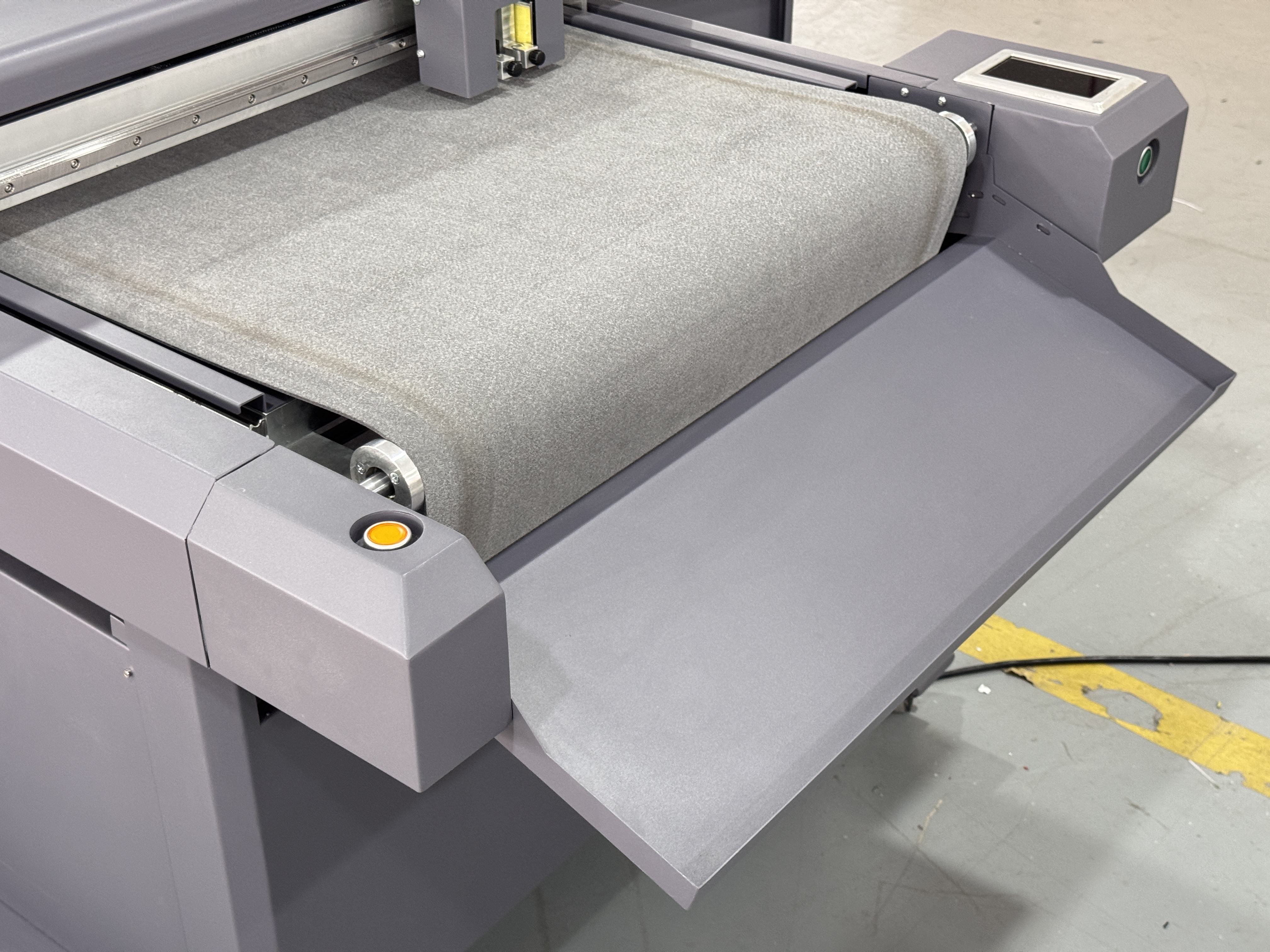

Advanced Auto Feeding System Designed with an ultra-fast and extra stable auto-feeding mechanism, ensuring continuous operation and precise material alignment.
High Cutting Force & Precision Delivers up to 2000g of cutting pressure with a repeatability accuracy of ±0.01mm, easily handling cardstock, PVC, leather, and foam.
AI-Camera Contour Cutting Integrated AI-camera system with enhanced display quality for precise auto contour cutting and pattern recognition.
Smart Double Row Roller Incorporates a smart double row roller system that optimizes material usage, helping save up to 30% more materials compared to standard feeders.

Technical Specifications

Machine Parameters

Brand / Model	SKYCUT FR6090 Flatbed Plotter
Machine Type	Dual Head Industrial Flatbed Cutter
Working Area Size	630 × 1200 mm
Max Material Placement	600 × 900 mm

Performance & Configuration

Motor System	DC Stepper Motor
Max Cutting Speed	800 mm/s
Max Cutting Pressure	2000 g
Cutting Accuracy	0.025 mm
Repeatability Accuracy	±0.01 mm

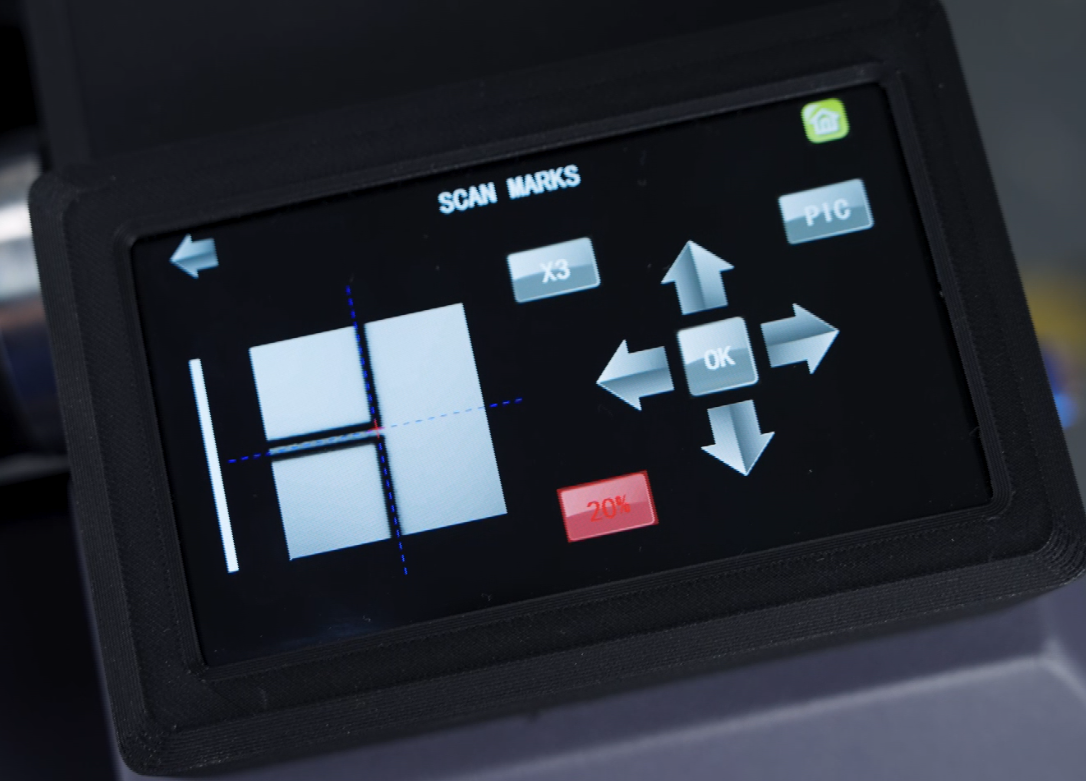

Control Panel	5-Inch Touch Screen

Connectivity & Environment

Connection Interface	Wi-Fi / USB / LAN Cable
Camera Support	Yes (AI-Camera System)
Automatic Feeding	Supported
Input Power	100–240V AC, 50/60Hz
Power Consumption	Main Unit: 150W / Fan: 1500W
Operating Temperature	5°C – 35°C

Physical Dimensions

Overall Machine Size	1770 × 1000 × 980 mm
Overall Machine Weight	200 kg

Application Scope

Compatible Materials	Cardstock, Heat Transfer Film, Self-Adhesive Paper, Kraft Paper, PVC, PET, Leather, Fabric
Industry Use	Packaging, Sample Making, Signage, Gasket Cutting, Textile Industry
