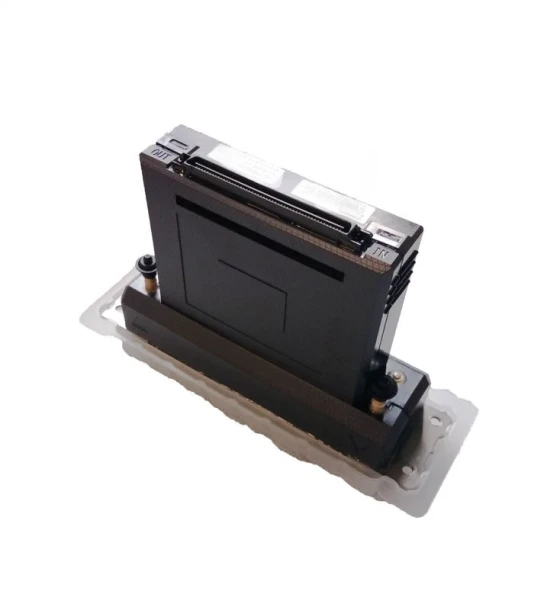

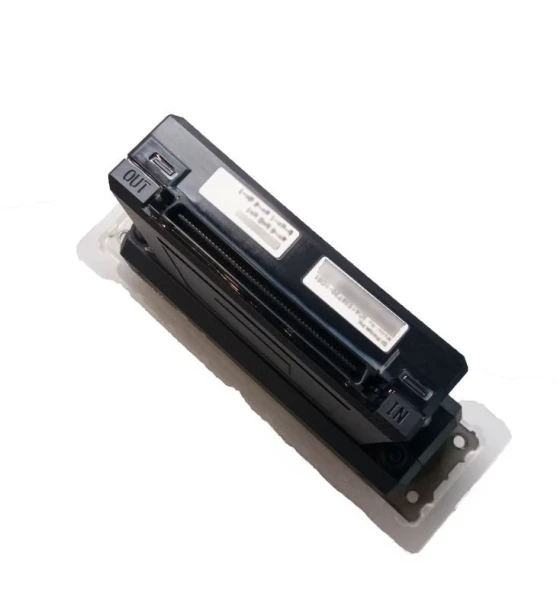

Seiko RC1536 Series Recirculation Printheads

High Productivity | Ink Circulation Technology | 10-Level Greyscale

The Seiko RC1536 Series is a line of high-performance recirculation printheads designed for demanding industrial applications such as ceramics, corrugated cardboard, textiles, and additive manufacturing. Featuring an innovative high-flow ink circulation structure, these printheads eliminate blockages automatically, significantly reducing ink wastage and ensuring stable, continuous operation.

Specifications

brand	DRS Corporation
model	Seiko RC1536 Series Recirculation Printheads \| Industrial Print Heads
key features	Seiko RC1536, Seiko Printhead, RC1536, Recirculation Printhead, Industrial Printhead

Key Features

Advanced Ink Circulation The constant high-speed ink stream behind the nozzles removes bubbles and impurities, prevents pigment sedimentation, and allows for automatic recovery from blockages without interrupting production.
Wide Ink Compatibility Designed to handle a broad spectrum of fluids, including Oil-based, UV, Solvent, and Water-based inks, as well as specialty fluids like varnish, white, and metallic inks.
Extra Wide Print Width Featuring a 108.3mm print width, the Seiko RC1536 allows for print-bar configurations with fewer heads, simplifying machine design and reducing costs.
High Productivity & Efficiency Operates at frequencies up to 37kHz with up to 10 levels of greyscale. Low-voltage operation reduces energy consumption and investment costs for driver electronics.
Versatile Drop Volume Capable of jetting drops ranging from 13pl to 225pl, making it suitable for both fine detail work and high-coverage applications.

Technical Specifications

Seiko RC1536M UV (ICA1536T20)

Ink Compatibility	Oil and UV Ink
Drop Volume Range	13 to 150 pL
Max Productivity (10 Drops)	1.500 µL/sec
Discharge at 25M/min	85 g/m²
Native Nozzle Resolution	360 npi
Active Nozzles	1536 (4 rows)
Jetting Frequency	Up to 37 kHz
Grey Levels	Up to 10
Print Width	108.3 mm
Dimensions (W x D x H)	180.0 x 47.6 x 123.3 mm
Weight	> 0.7 kg

Seiko RC1536L UV (ICA1536T0L)

Ink Compatibility	Oil and UV Ink
Drop Volume Range	25 to 225 pL
Max Productivity (10 Drops)	2.477 µL/sec
Discharge at 25M/min	85 g/m²
Native Nozzle Resolution	360 npi
Active Nozzles	1536 (4 rows)
Jetting Frequency	Up to 37 kHz
Grey Levels	Up to 10
Print Width	108.3 mm
Dimensions (W x D x H)	180.0 x 47.6 x 123.3 mm
Weight	> 0.7 kg

Seiko RC1536M Water Based (ICA1536A20)

Ink Compatibility	Water Based Ink
Drop Volume Range	13 to 150 pL
Max Productivity (10 Drops)	1.500 µL/sec
Discharge at 25M/min	85 g/m²
Native Nozzle Resolution	360 npi
Active Nozzles	1536 (4 rows)
Jetting Frequency	Up to 37 kHz
Grey Levels	Up to 10
Print Width	108.3 mm
Dimensions (W x D x H)	180.0 x 47.6 x 123.3 mm
Weight	> 0.7 kg

Seiko RC1536L Water Based (ICA1536A0L)

Ink Compatibility	Water Based Ink
Drop Volume Range	25 to 225 pL
Max Productivity (10 Drops)	2.477 µL/sec
Discharge at 25M/min	85 g/m²
Native Nozzle Resolution	360 npi
Active Nozzles	1536 (4 rows)
Jetting Frequency	Up to 37 kHz
Grey Levels	Up to 10
Print Width	108.3 mm
Dimensions (W x D x H)	180.0 x 47.6 x 123.3 mm
Weight	> 0.7 kg
