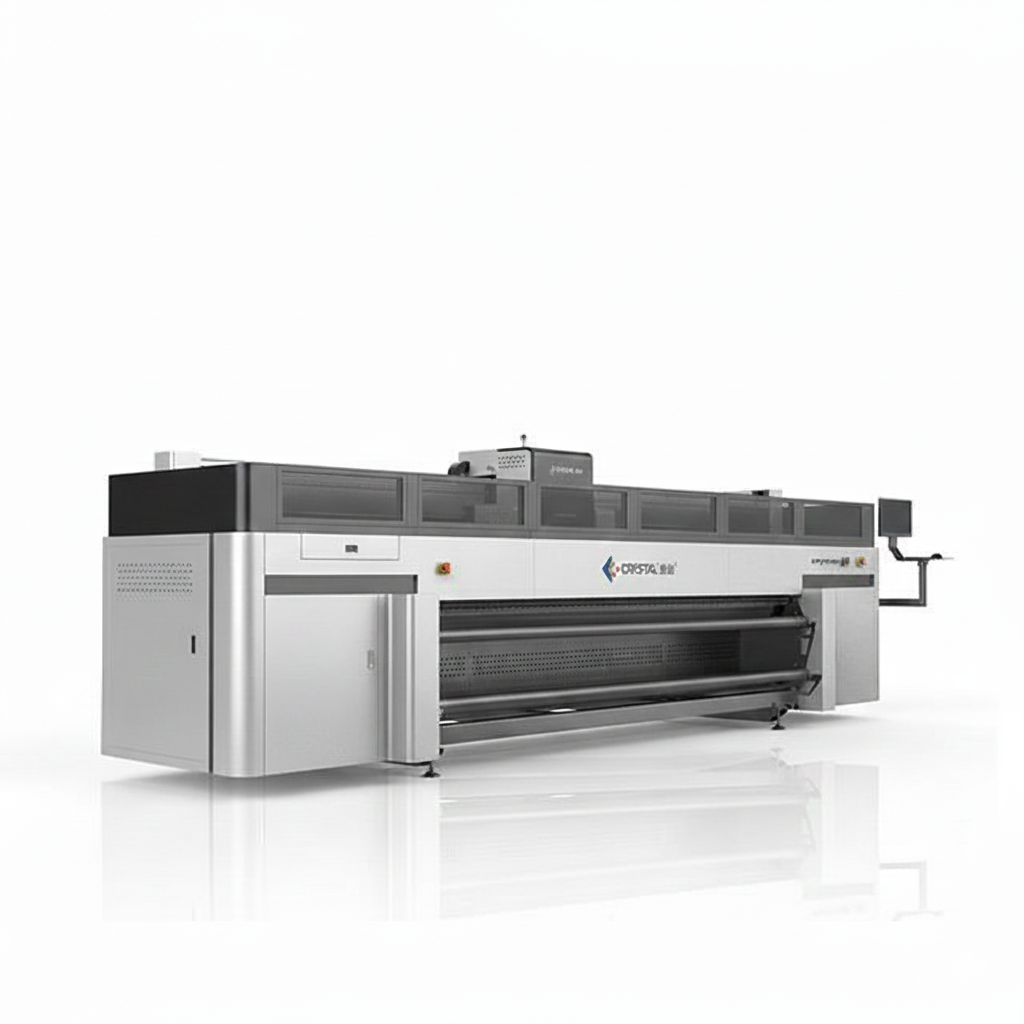

K8 Series UV Roll-to-Roll Printers

Flex Banner, Vinyl, Wallpaper & Poster Printing Machine

Expand your print business with the K8 Series, an industrial UV printing solution designed for versatility and precision. Capable of handling a wide variety of flexible media—including backlit fabric, ceiling film, vinyl, advertising banners, PET, and wallpaper—this machine is the perfect partner for both indoor and outdoor applications.

Built with a robust beam and high-precision mechanical accuracy, the K8 Series ensures high-quality back-to-back printing with accurate dot placement. This design not only guarantees superior image quality but also optimizes ink consumption, making your production more efficient and cost-effective.

Product Features

Versatile Media Handling: Supports a vast range of flexible media from soft films and PVC flex banners to leather and wallpaper, allowing you to diversify your service offerings.
Industrial Precision: Features a robust beam structure and THK mute guide rails for stable stepping and bi-directional switching, ensuring faster production speeds without compromising accuracy.
High-Speed Productivity: Equipped with high-power A/C servo systems that improve movement capability by 50%, significantly boosting your output.
Intelligent Ink Management: Includes a water cycle heating system to ensure better ink absorption and an intelligent cleaning system to maintain printhead health with minimal manual intervention.
Superior Adhesion System: Utilizes a super big four glue stick linkage system to ensure smooth media feeding and consistent print quality across the entire width.

Specifications

brand	DRS Corporation
model	K8-680 \| K8-530 \| K8-320 UV Roll-to-Roll Printers \| Flex Banner, Vinyl & Wallpaper Printing

Why Choose the K8 Series?

Discover an industrial UV roll-to-roll printing solution built for versatility, precision, and high-volume production.

Versatile Media Handling Supports a vast range of flexible media from soft films and PVC flex banners to leather and wallpaper, allowing you to diversify your service offerings.
Industrial Precision Features a robust beam structure and THK mute guide rails for stable stepping and bi-directional switching, ensuring faster production speeds without compromising accuracy.
High-Speed Productivity Equipped with high-power A/C servo systems that improve movement capability by 50%, significantly boosting your output.
Intelligent Ink Management Includes a water cycle heating system to ensure better ink absorption and an intelligent cleaning system to maintain printhead health with minimal manual intervention.
Superior Adhesion System Utilizes a super big four glue stick linkage system to ensure smooth media feeding and consistent print quality across the entire width.

The Advantage: Industrial UV Printing Technology

The K8 Series combines high-precision mechanical construction, advanced UV ink technology, and intelligent media handling to provide reliable performance across a wide range of flexible printing applications.

1. High-Precision Production

Accurate Dot Placement: High-precision mechanical accuracy helps deliver consistent image quality and precise dot placement during production.
Robust Beam Structure: The industrial beam construction provides stable operation and helps maintain accuracy during high-speed printing.
Advanced Motion System: High-power A/C servo systems improve movement capability by 50%, supporting faster and more efficient production.

2. Intelligent Ink & Media Management

The K8 Series incorporates a water cycle heating system for improved ink absorption, an intelligent cleaning system for printhead maintenance, and a super big four glue stick linkage system for smooth and consistent media feeding.

Model Specifications

K8-320 UV Roll to Roll Printer

Print Width	3,220mm
Printhead Type	SPT1024GS-7PL / Starfire 1024
Printhead Configuration	4 / 8 / 12 / 16 pcs (Optional)
Ink Type	UV Ink (CMYK, Lc, Lm, W)
Print Speed (High Config)	Draft (4Pass): 99 ㎡/h Standard (6Pass): 70 ㎡/h High Res (8Pass): 55 ㎡/h
Print Speed (Std Config)	Draft (4Pass): 72 ㎡/h Standard (6Pass): 48 ㎡/h High Res (8Pass): 36 ㎡/h
RIP Software	United Fancy / Photoprint
Power Specification	Print System: 3000W UV System: 2500W
Machine Dimensions	6,320mm × 1,737mm × 1,769mm
Net Weight	1,250kg ± 15kg

K8-530 UV Roll to Roll Printer

Print Width	5,000mm
Printhead Type	SPT1024GS-7PL
Printhead Configuration	4 / 8 / 12 pcs (Optional)
Ink Type	UV Ink (CMYK, Lc, Lm, W)
Print Speed	Draft (4Pass): 64 ㎡/h Standard (6Pass): 48 ㎡/h High Res (8Pass): 32 ㎡/h
RIP Software	United Fancy / Photoprint / Onyx
Power Specification	Print System: 3000W
Machine Dimensions	8,230mm × 1,740mm × 1,885mm
Net Weight	4,250kg ± 15kg

K8-680 UV Roll to Roll Printer

Print Width	Super Wide Format (Contact for specific width details)
Printhead Type	SPT1024GS-7PL / Starfire 1024
Printhead Configuration	Variable configurations available (Up to 16+ pcs)
Ink Type	UV Ink (CMYK, Lc, Lm, W)
Media Handling	Heavy-duty Roll to Roll feeding and take-up system
Construction	Reinforced industrial beam for maximum stability

General & Environment Specifications

Media Compatibility

Media Types	Soft film, Banner, PVC Flex Banner, Light Box Panel, Leather, Wallpaper, Backlit Fabric, Ceiling Film, PET, etc.
Media Processing	Roll to Roll feeding and take-up system
Carriage Height	Adjustable 2-5mm distance to platform

Operational Environment

Working Voltage	AC 220V 50/60Hz
Operating Temperature	22°C - 30°C
Relative Humidity	15% - 40% RH
File Formats	TIFF, JPG, EPS, PDF
Operating System	Windows 7 / 8 / 10 Workstation

Application Scope

Ideally suited for flexible media, advertising, interior decoration, and large-format printing applications:

Flex Banner High-quality UV printing for advertising banners and outdoor promotional applications.

Vinyl & Soft Film Supports flexible vinyl and soft film media for a wide range of indoor and outdoor printing requirements.

Wallpaper Produces detailed and vibrant designs for interior wall decoration and customized wallpaper applications.

Backlit Fabric Suitable for producing high-quality graphics for illuminated displays and light box applications.

Ceiling Film Supports ceiling film printing for decorative and architectural interior applications.

PET & Light Box Panel Compatible with PET and light box panel media for customized advertising and display solutions.

Leather Enables customized UV printing on leather materials for decorative and specialty applications.
