Nuventure CJ4008 Solvent Printer | Seiko 508GS/510GS Industrial Wide Format

Model: SOLVENT PRINTERS

In Stock

Nuventure CJ4008 Solvent Printer

3.2m Wide Format | Seiko 508GS/510GS Technology

The Nuventure CJ4008 is a robust wide-format solvent printer designed for high-volume industrial production. Featuring a classic luxury configuration capable of holding 8 Seiko 508GS/510GS printheads, it offers exceptional versatility and speed. With an advanced four-stage heating system and intelligent infrared drying, the CJ4008 ensures stable output and superior print quality across a variety of media types.

Specifications

brand	DRS Corporation
model	Nuventure CJ4008 Solvent Printer \| Seiko 508GS/510GS Industrial Wide Format
key features	Nuventure CJ4008, Seiko 508GS, Solvent Printer, Wide Format Printer

Key Features

Flexible Printhead Configuration Supports luxury configurations of 8 Seiko 508GS-12PL or 510GS-50PL heads, allowing users to balance speed and quality for specific application needs.
Patented Lifting Ink Stack System Features a patented design lifting ink stack that provides superior air tightness, ensuring safe and reliable printhead protection.
Advanced Heating & Drying System Equipped with a four-stage heating system (pre, mid, post, and printhead heating) combined with an infrared hot air drying system for immediate media curing.
Rugged Industrial Construction Built with a heavy-duty body structure to minimize vibration and guarantee stable, high-quality output during long print runs.
Intelligent Automation Includes automatic moisturizing, intelligent cleaning, and an automatic take-up and feeding system for simple, user-friendly operation.

Technical Specifications

Printing Configuration

Printer Model	Nuventure CJ4008 Solvent Printer
Printhead Options	Seiko 508GS-12PL (8 Heads) / Seiko 510GS-50PL (8 Heads) / Seiko 508GS-12PL (4 Heads)
Print Width	3200mm
Ink Type	Solvent Ink / Eco-Solvent Ink
Color Configuration	CMYK
RIP Software	Maintop, Ultralink, Photoprint
Interface	USB 2.0 + Fiber Optical

Print Speed Performance

Print Mode	Resolution / Pass	8x 508GS (12pl)	8x 510GS (50pl)	4x 508GS (12pl)
Draft Mode	480*360dpi (2 Pass)	220 ㎡/h	130 ㎡/h	110 ㎡/h
Speed Mode	480*540dpi (3 Pass)	130 ㎡/h	120 ㎡/h	75 ㎡/h
Standard Mode	480*720dpi (4 Pass)	95 ㎡/h	75 ㎡/h	56 ㎡/h

Printing Assistant System

Heating System	4-Stage: Before printing, during printing, after printing, & printhead heating
Air Drying System	Infrared heating + Fan drying system (Middle infrared wave)
Cleaning Method	Intelligent cleaning + Head capping moisturizing
Carriage Height	2-5mm distance to platform (adjustable)

Media Handling

Media Processing	Double rod feeding system, Single rod take-up system (optional)
Media Types	PVC Flex Banner, Self-adhesive Vinyl, Mesh, Billboard Banner, Photo Paper, PP, etc.

Physical & Electrical Specifications

Working Voltage	AC220V 50/60HZ
Power Specification	Print System: 500W \| Heating System: 1500W \| IR Heating: 3600W
Operating Environment	Temperature: 22°C-28°C, Humidity: 40%-70% RH

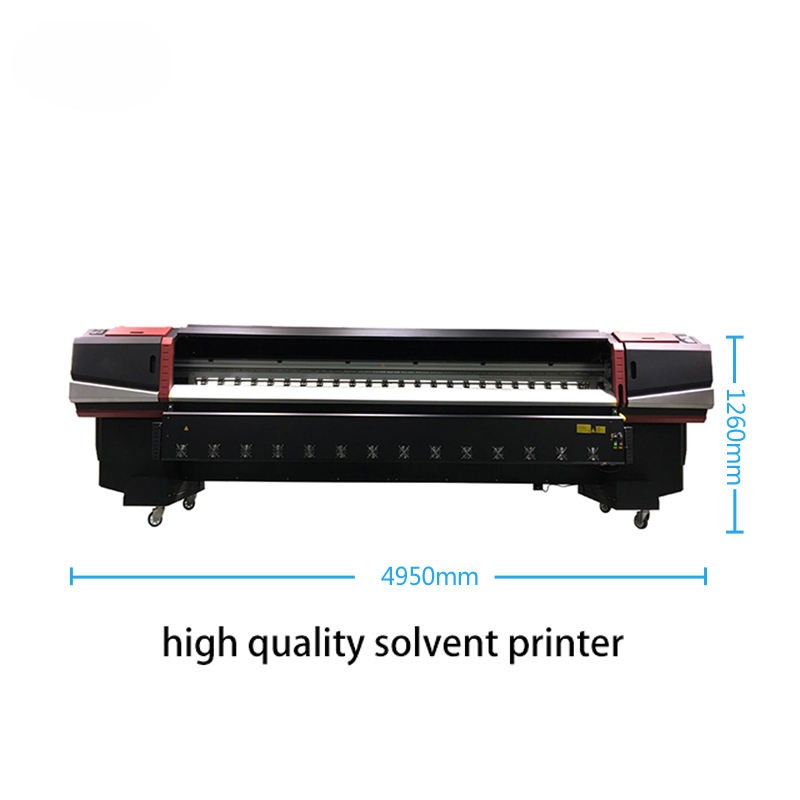

Machine Dimensions	4950mm (L) * 1030mm (W) * 1310mm (H)
Net Weight	600KG ±15KG
Gross Weight	760KG ±15KG
