T1320-10 CERAMIC PRINTER FOR FLEXIBLE & PU STONE

Model: Ceramic Printers

In Stock

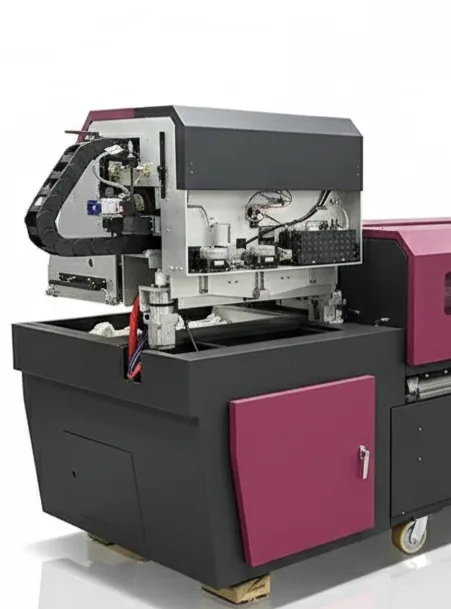

T1320-10 Ceramic Printer for Flexible & PU Stone

High-Resolution | Inorganic Ink Technology | No High-Energy Firing

Meet the T1320-10 Ceramic Printer, a state-of-the-art industrial solution designed for high-speed printing on flexible stone, PU stone, and ceramic surfaces. Combining the durability of inorganic inks with precision piezoelectric technology, this machine delivers realistic textures and long-lasting colorfastness without the need for energy-intensive firing processes.

Product Features

Model Specific: The T1320-10 is engineered for heavy-duty industrial use with a maximum media width of 1.3m–3m.
No High-Energy Firing: Cures at low temperatures of 30–38℃, eliminating the need for traditional kiln firing and significantly reducing energy costs.
High-Resolution Output: Achieves up to 1200 dpi resolution with grayscale printing technology for photo-realistic stone textures.
Scalable Speed: Configurable with 4, 8, 12, or 18 print heads, offering production capacities ranging from 30㎡/h up to 150㎡/h.
Smart Operation: Equipped with an ink shortage alarm and ICC color control curves for consistent and automated production.

Specifications

brand	DRS Corporation
model	T1320-10 CERAMIC PRINTER FOR FLEXIBLE & PU STONE

Product Specifications

General Parameters

Product Name	T1320-10 Ceramic Printer
Certification	CE Certified
Inkjet Technology	Piezoelectric Inkjet with Grayscale Printing
Print Resolution	1200 dpi
Color Configuration	CMYK (Optional 6-color scheme)
Ink Type	Special Inorganic Inks
Operating System	Windows 7 / 10

Performance & Capacity

Print Heads (Optional)	Seiko RC1536 / Dimatix SG1024 / Xaar 2002
Head Configuration	4 / 8 / 12 Heads (Optional up to 18)
Max Print Speed	0.7 m/s
Max Print Width	1.3m – 3m
Capacity (2 Pass)	4 Heads: 30-50 ㎡/h 8 Heads: 60-100 ㎡/h 12 Heads: 90-150 ㎡/h

Media & Mechanical Specs

Compatible Media	Flexible Stone, PU Stone, Ceramic Tile, Glass, Metal
Media Thickness	3mm – 50mm (Variable thickness supported)
Media Flatness Requirement	≤ 2mm
Machine Dimensions (L×W×H)	4700mm × 2900mm × 2000mm
Weight	Approx. 3000kg

Operational Environment

Power Supply	380V
Max Power	20kW
Ambient Temperature	20℃ – 30℃
Relative Humidity	35% – 65%

Application Scope

Ideally suited for architectural decoration materials:

Flexible Stone Printing realistic stone textures on bendable substrates for interior and exterior wall cladding.

PU Stone High-definition patterns for polyurethane stone panels, offering a lightweight yet durable finish.

Hard Materials Compatible with Ceramic Tiles, Glass, and Metal plates for customized industrial decoration.
