Nuventure CG-UV1216 UV Flatbed Printer | High-Precision Industrial Printing

Model: UV Printers

In Stock

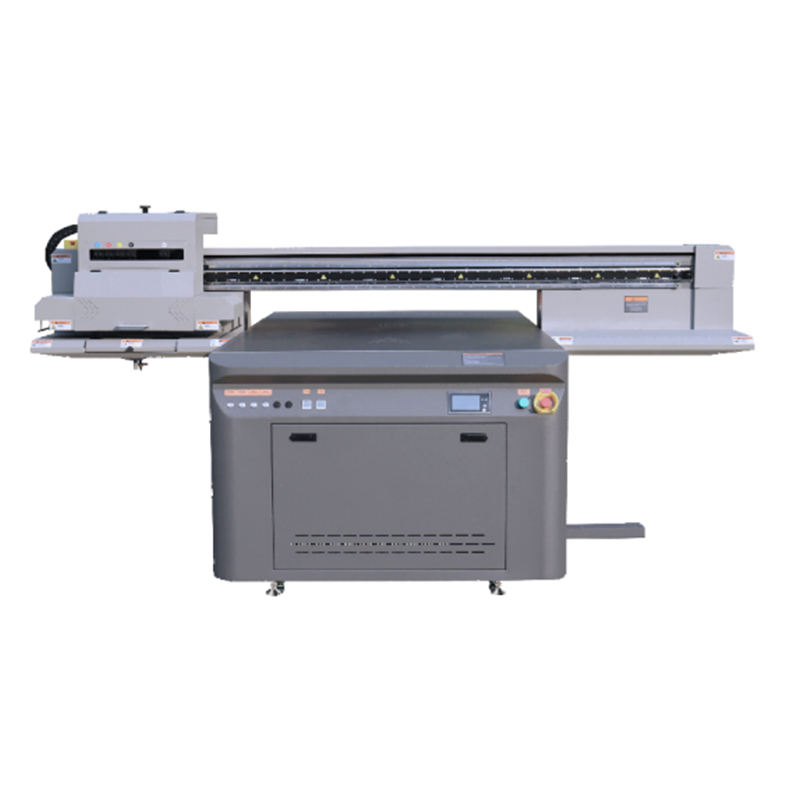

Nuventure CG-UV1216 UV Flatbed Printer

Versatile Industrial Printing | High Resolution | 150mm Thickness

The Nuventure CG-UV1216 is a powerful UV flatbed printer designed for industrial versatility. With support for multiple industrial printhead options (I3200, GH2220, G5, G6) and a large print size of 1200x1600mm, it delivers exceptional image quality on a vast array of rigid and flexible materials. Its robust construction and advanced vacuum platform make it ideal for signage, industrial decoration, and customized manufacturing.

Specifications

brand	DRS Corporation
model	Nuventure CG-UV1216 UV Flatbed Printer \| High-Precision Industrial Printing
key features	Nuventure CG-UV1216, UV Flatbed Printer, I3200 Printer, GH2220 Printhead, Large Format UV Printer

Key Features

Flexible Printhead Configuration Supports a wide range of industrial heads including Epson I3200, GH2220, Ricoh G5, and G6, allowing customization based on speed and quality requirements.
Heavy-Duty Media Support Accommodates materials with thickness up to 150mm, perfect for industrial applications involving thick substrates like wood, metal, and acrylic.
Advanced Vacuum Platform Features a hard alumina honeycomb platform that adapts to materials of different specifications, ensuring stable feeding and precise printing.
High Resolution Output Achieves resolutions up to 1200 DPI, delivering sharp details and vibrant colors for high-end graphic production.
Dual Negative Pressure Ink System Ensures stable ink supply with 1.5L cartridges equipped with a warning system to prevent ink shortages during production.

Technical Specifications

Printing Configuration

Model	CG-UV1216
Printhead Options	I3200 / GH2220 / G5 / G6
Resolution	600 DPI, 900 DPI, 1200 DPI
Colors	CMYK / LcLm / W / V (Optional)
Ink Type	UV Ink
Print Size (Max)	1200 × 1600 mm

Hardware & Platform

Vacuum Platform	Hard Alumina Honeycomb Platform
Media Thickness	0 – 150 mm
Curing System	UV LED / Mercury Lamp (Optional)

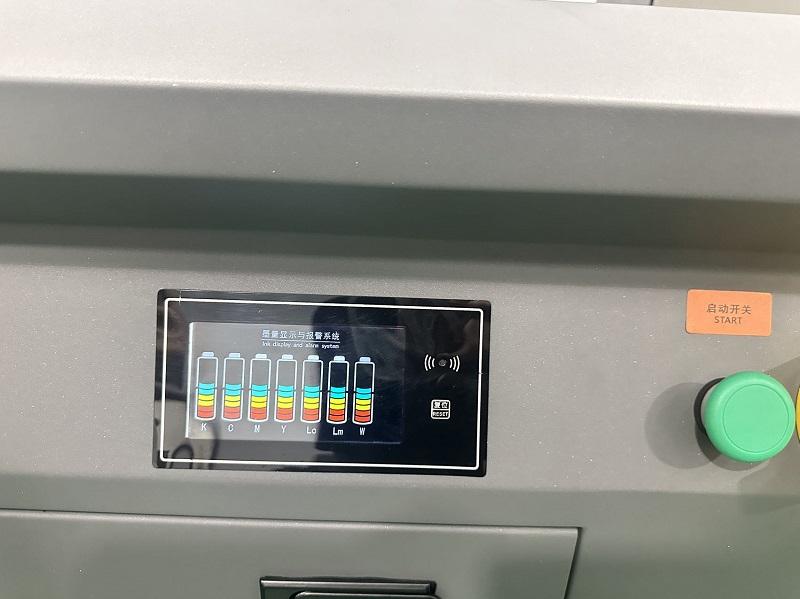

Ink Cartridge	1.5L with Warning System

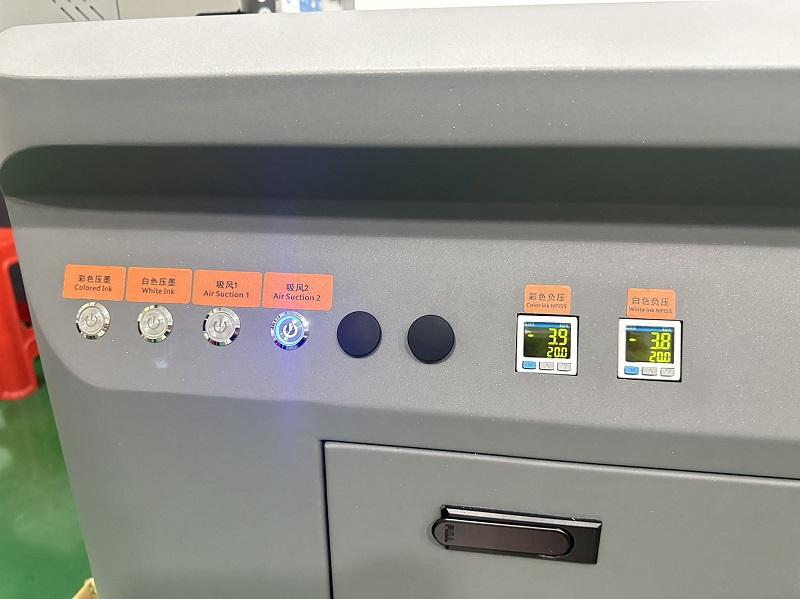

Ink Supply System	Dual Negative Pressure Ink Supply System

System & Software

Operating System	Windows 7/8/10/11 64bit (RAM ≥ 8G)
RIP Software	Photoprint, Colorgate
Supported Formats	TIFF, JPEG, EPS, PDF, PSD, CDR, AI, CAD

Physical & Electrical

Machine Dimensions (W×L×H)	2800 × 2360 × 1600 mm
Net Weight	700 kg
Power Supply	Max: 5kW; AC 220V (±10%) >15A; 50Hz~60Hz
Working Environment	Temp: 18℃~26℃, Humidity: 40%~70%
Certifications	CE, SGS, MSDS

Print Media Applications

Glass
Acrylic
Ceramic Tile
Metal
PVC Board
Cardboard
Wooden
Decal
Wallpaper
Flex Banner
